Magnetic Tiled Access Panels: Selection and Installation
Magnetic access panels beneath tiles
Magnetic access panels let you cover an inspection opening with the same tiles used on the surrounding wall. Access to risers, drains or service pipes is therefore preserved without an ordinary plastic or metal door disrupting the appearance of the bathroom.
- The tiled panel blends into the surrounding tiles.
- Magnets hold the removable section in place.
- The panel can be opened without a conventional lock.
- Both ready-made panels and separate installation kits are available.
How do magnetic access panels work?
Tiled access panels consist of a frame, a backing plate and magnetic catches. Tiles matching the surrounding wall are bonded to the backing plate.
When closed, magnets hold the plate in the frame. For inspection or repair, the entire tiled section can be carefully removed, usually with a suction cup.
A ready-made panel or a magnet set?
Ready-made magnetic access panels
These have a prepared frame and backing plate in a specific size. They are suitable where the opening matches an available format.
Magnets for tiled panels – set
A separate set offers a more flexible solution. It contains magnetic catches and anchoring plates that let you create a removable tiled section to suit a particular opening.
Quick comparison
- Ready-made panel: easier installation and a precisely defined size.
- Separate set: more freedom when designing the shape of the access opening.
- Anchoring plate: a replacement or additional part of the magnetic system.
Where can access panels be used?
- to access riser pipes in a toilet,
- to inspect drainage beneath a bathtub,
- to conceal water shut-off valves,
- for service pipes behind tiles,
- in bathrooms, hotels, commercial premises and shared washrooms.
The opening must be large enough to provide real access to the equipment. Simply covering pipes with a small tile is not enough if the necessary repair could not be carried out through the opening.
Basic installation principles
- Determine the size of the access opening according to the equipment that must be reached.
- Plan the positions of the surrounding tile joints.
- Secure the frame or magnetic catches firmly.
- Adjust the height of the magnets so that the tiles sit flush with the wall.
- Bond the tiles to the backing plate with a suitable adhesive.
- Test opening the panel several times before grouting.
- Do not permanently grout the perimeter of the removable section.
The panel must remain genuinely accessible
Do not permanently seal the access opening with adhesive or rigid grout. These panels are not intended for fire compartmentation or escape routes.
Recommended products
Right-angle anchoring plate
A separate anchoring component used to assemble a magnetic tile mounting system.
- Right-angle design
- Part of the magnetic system for tiled access panels
- Suitable as a replacement or additional component
- Product code 10219
Magnetic access panel 200 × 200 mm
A ready-made access panel for smaller openings in a bathroom, toilet or beneath bathtub tiling.
- Dimensions 200 × 200 mm
- Weight 0.8 kg
- Galvanised steel backing plate
- Removable PVC frame
- Height-adjustable ferrite magnets
- For openings up to 2,000 cm² in area
- Product code 10214

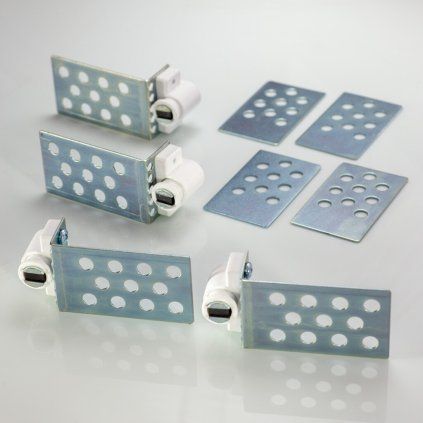

Magnets for tiled panels – set
An installation kit for creating a removable tiled section without a ready-made access panel frame.
- Contains 4 complete sets
- Ferrite magnets
- Magnets supplied with anchoring plates
- Pack weight 136 g
- Suitable for custom opening dimensions
- Product code 10218
Frequently asked questions
How do magnetic access panels open?
The tiled section is usually removed carefully with a suction cup.
Can a standard tile be bonded to the panel?
Yes, provided that its size and weight suit the panel’s design and a suitable adhesive is used.
What is the difference between a panel and a set?
A panel has a ready-made frame and backing plate. A set contains separate magnets and plates for constructing your own access opening.
Can the panel be used in a fire-rated wall?
No. This type is not intended for separating fire compartments or for escape routes.
Do the panel’s tile joints have to align with the surrounding joints?
It is not technically necessary, but correctly planning the joints makes the access opening less visible.
Summary
Magnetic access panels preserve access to services while maintaining the appearance of a tiled wall. Ready-made panels are easier to install, while a separate set lets you adapt the dimensions to a particular opening.
Before finishing the tiling, always check that the panel opens easily and that the opening is large enough for future servicing.
