Magnetic sweeper for cleaning carriers MM 1800 DM F-MODEL 1
We ship within 24 hours
We ship goods within 24 hours on business days.
9,000,000 pcs IN STOCK
We have more than 9,000,000 items in stock.
23 years on the market
We are a Czech company with 23 years of experience on the market.
Thousands of satisfied customers.
Thousands of packages shipped and satisfied customers.

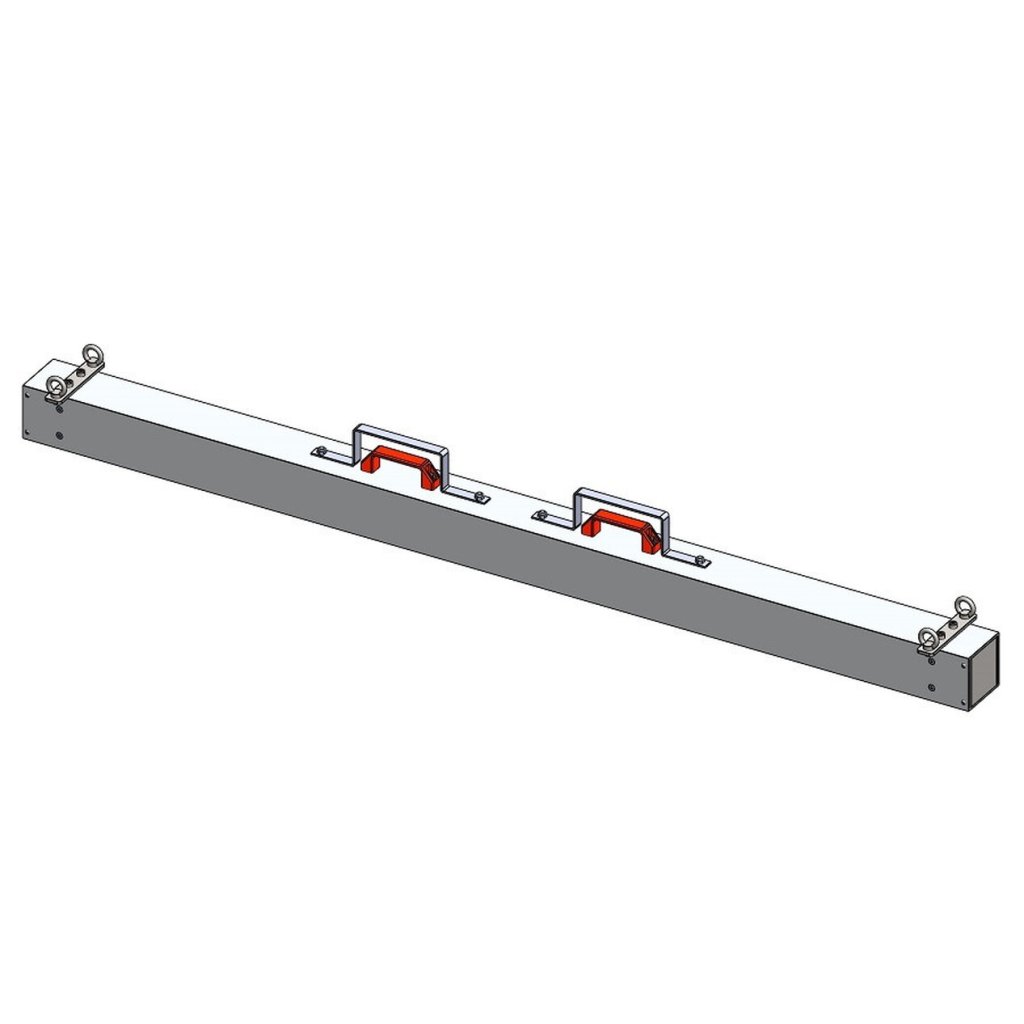

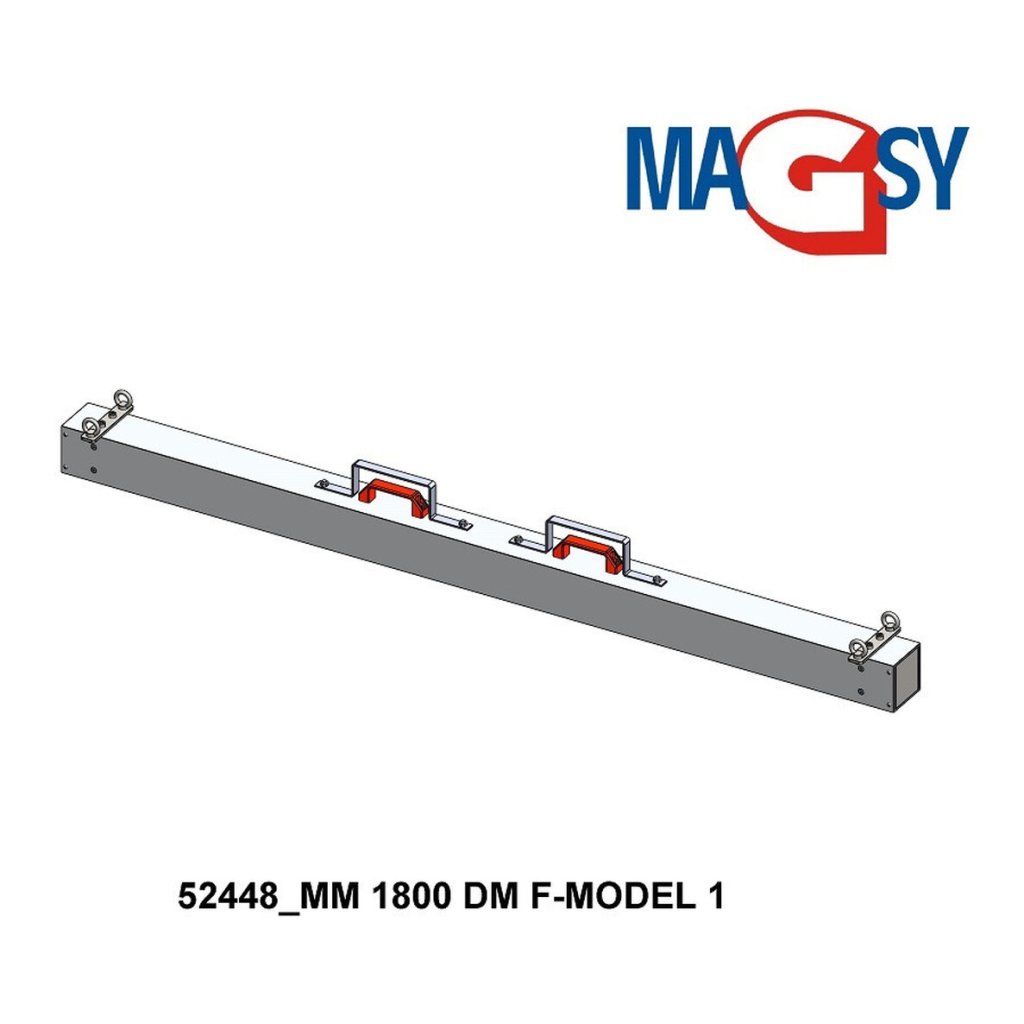

The magnetic broom is suitable for collecting ferromagnetic impurities using a forklift. The broom width is 1,800 mm, it contains ferrite magnets. The magnetic broom is made of EN-AW 6060 aluminium. The broom features a Scotch-Brite brushed surface finish. The maximum working temperature of the magnetic broom is 80°C, and its total weight is 23.4 kg. Connection: 4x suspension eye Ø 23 mm.
For more information, visit: www.magsy.cz
Tests of collecting various metallic material
| MM 1800 DM F-MODEL 1 52448 |
Distance from the surface |
||
| 30 mm | 50 mm | 80 mm | |
| Lifted object | Collection success rate | ||
| Small office clip (0,3 g) | 100 % | 100 % | 80 % |
| Steel splinter (1,4 g) | 100 % | 100 % | 0 % |
| Self-tapping screw 4x60 (2,8 g) | 100 % | 100 % | 70 % |
| Self-tapping screw 5x80 (6 g) | 100 % | 100 % | 40 % |
| Pad 5 (0,3 g)) | 100 % | 100 % | 0 % |
| Pad 8 (1,5 g) | 100 % | 90 % | 0 % |
| Pad 10 (2,9 g) | 100 % | 90 % | 0 % |
| Nut M5 (1,1 g) | 100 % | 30 % | 0 % |
| Nut M8 (4,6 g) | 100 % | 10 % | 0 % |
| Nut M10 (10 g) | 100 % | 10 % | 0 % |
| Screw M6x10 (4 g) | 100 % | 10 % | 0 % |
| Screw M8x20 (11,8 g) | 100 % | 50 % | 0 % |
| Screw M10x55 (37,4 g) | 100 % | 60 % | 0 % |
Additional parameters
| Category: | Magnetic brooms |
|---|---|
| EAN: | 8595134061284 |
| Body material: | Aluminium EN-AW 6060 |
| Connection: | 4x suspension eye Ø 23 mm (0 29⁄32 in) |
| Magnet type: | Ferrite |
| Magnetic area width (mm): | 1800 |
| Mounting mechanism material: | Stainless steel DIN 1.4301, EN 10088, (X5CrNi 18-10), ČSN 17240, AISI 304, AKV 7 |
| Mounting mechanism's surface treatment: | Glass bead blasting |
| Product state: | New |
| Surface treatment: | Scotch-bright brushing |
| Temperature resistance: | 80 °C |
| Total weight: | 24 kg |
| The item has been sold out… | |
