Gauss meter /Tesla meter MAGMAG SET with probe and USB cable

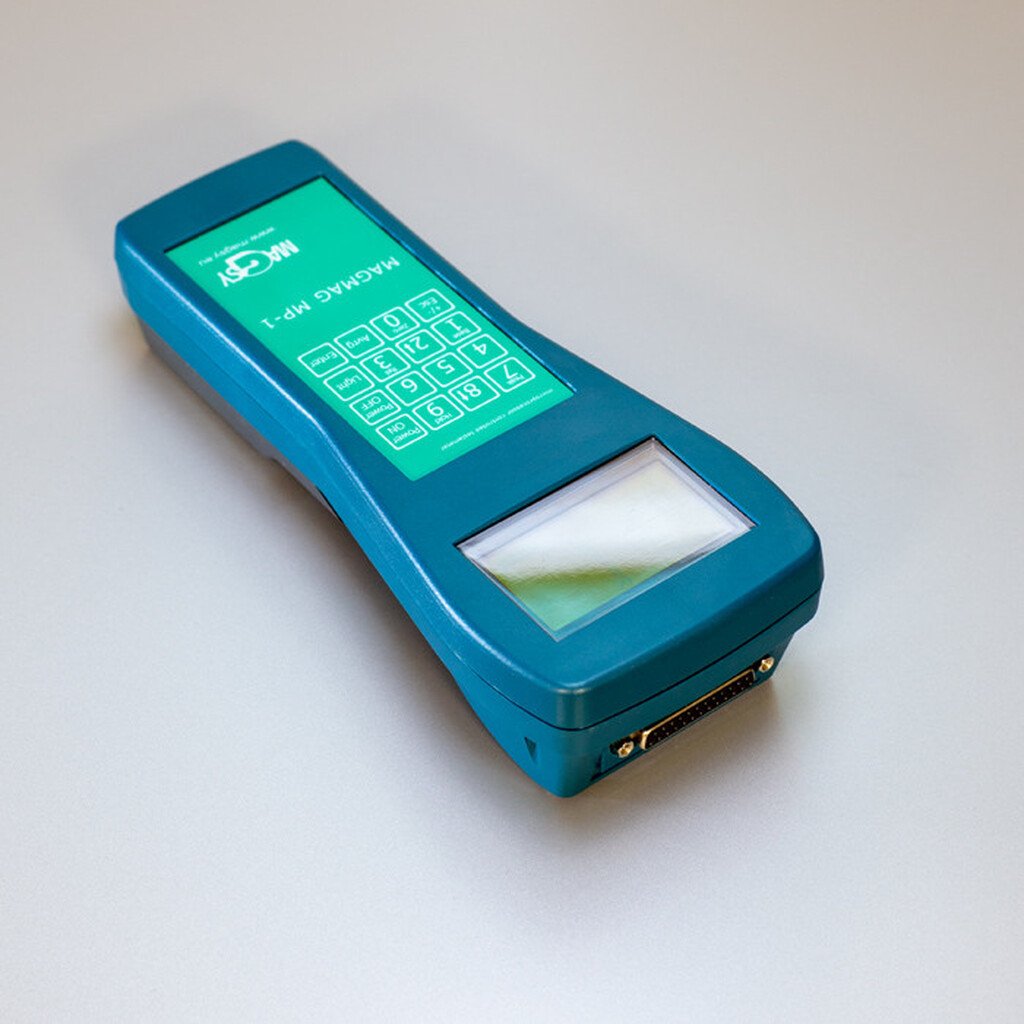

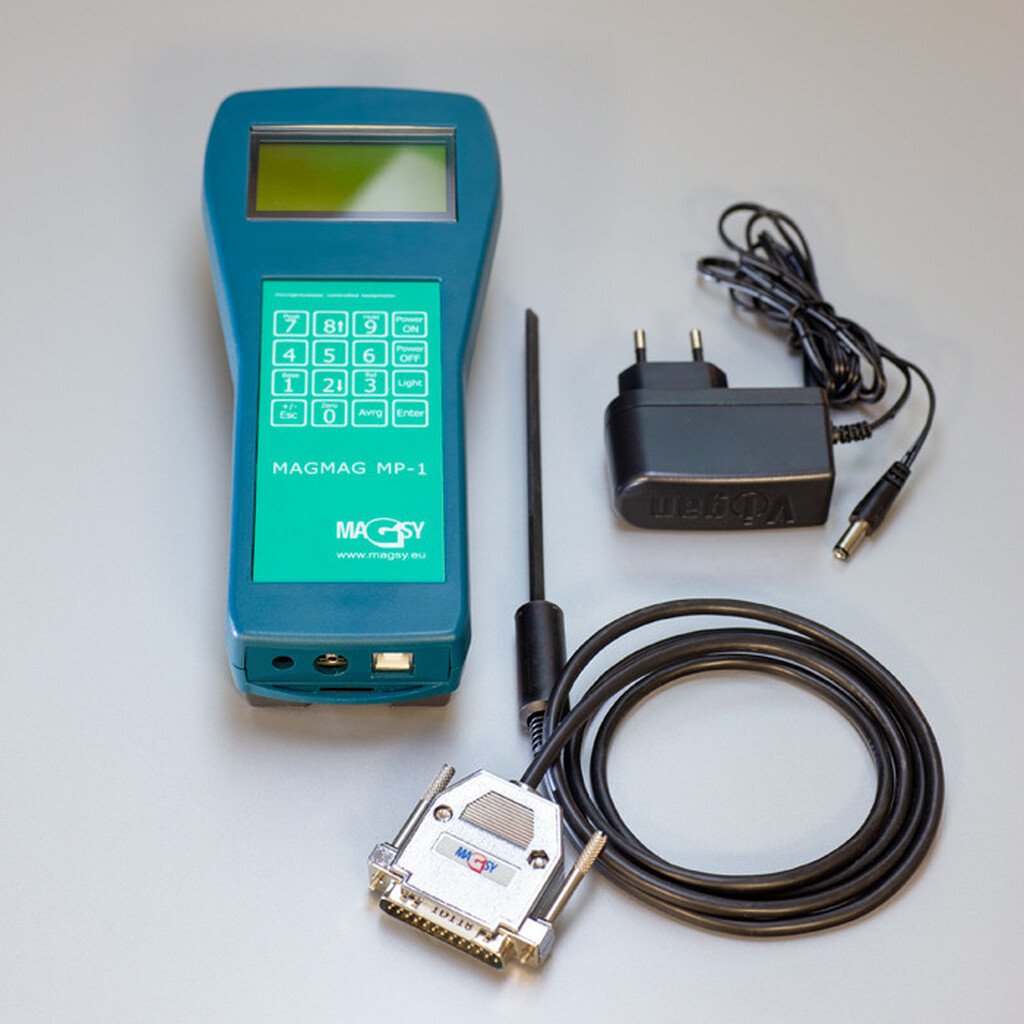

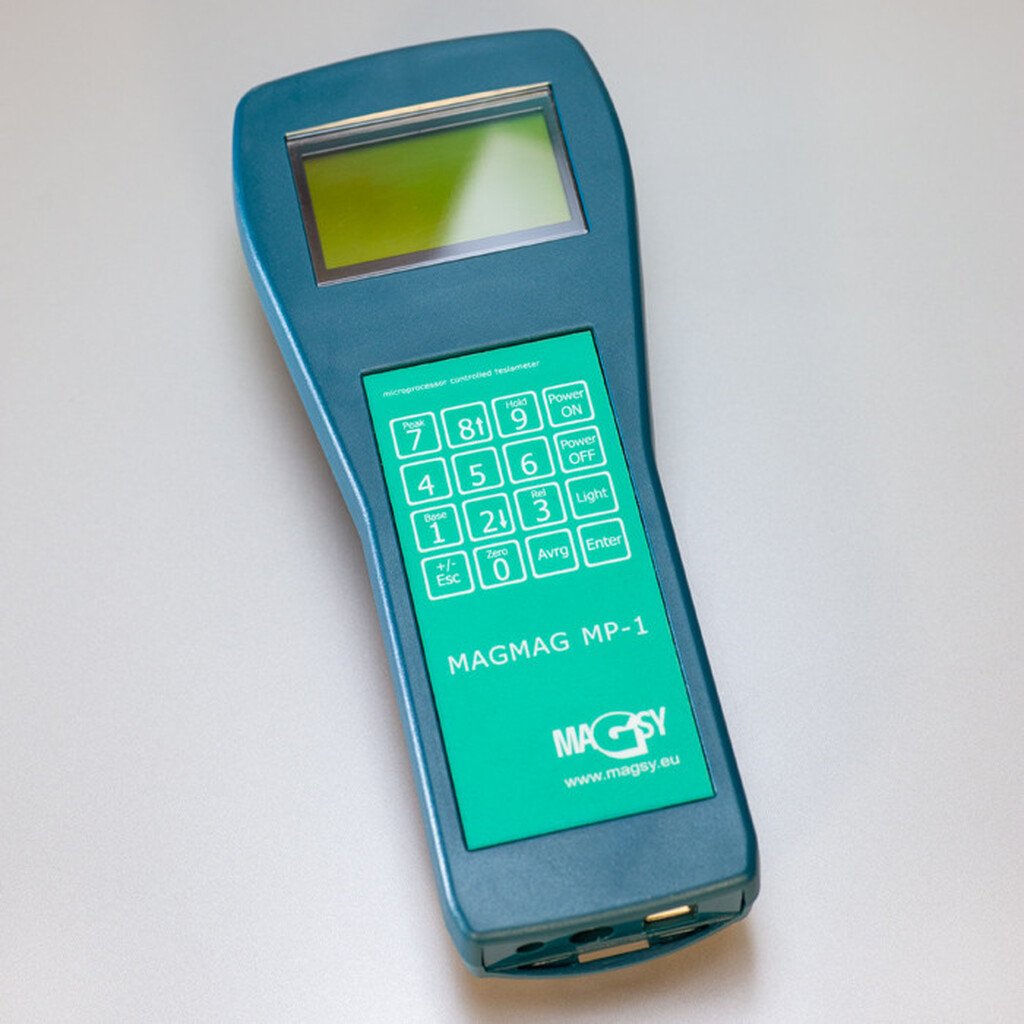

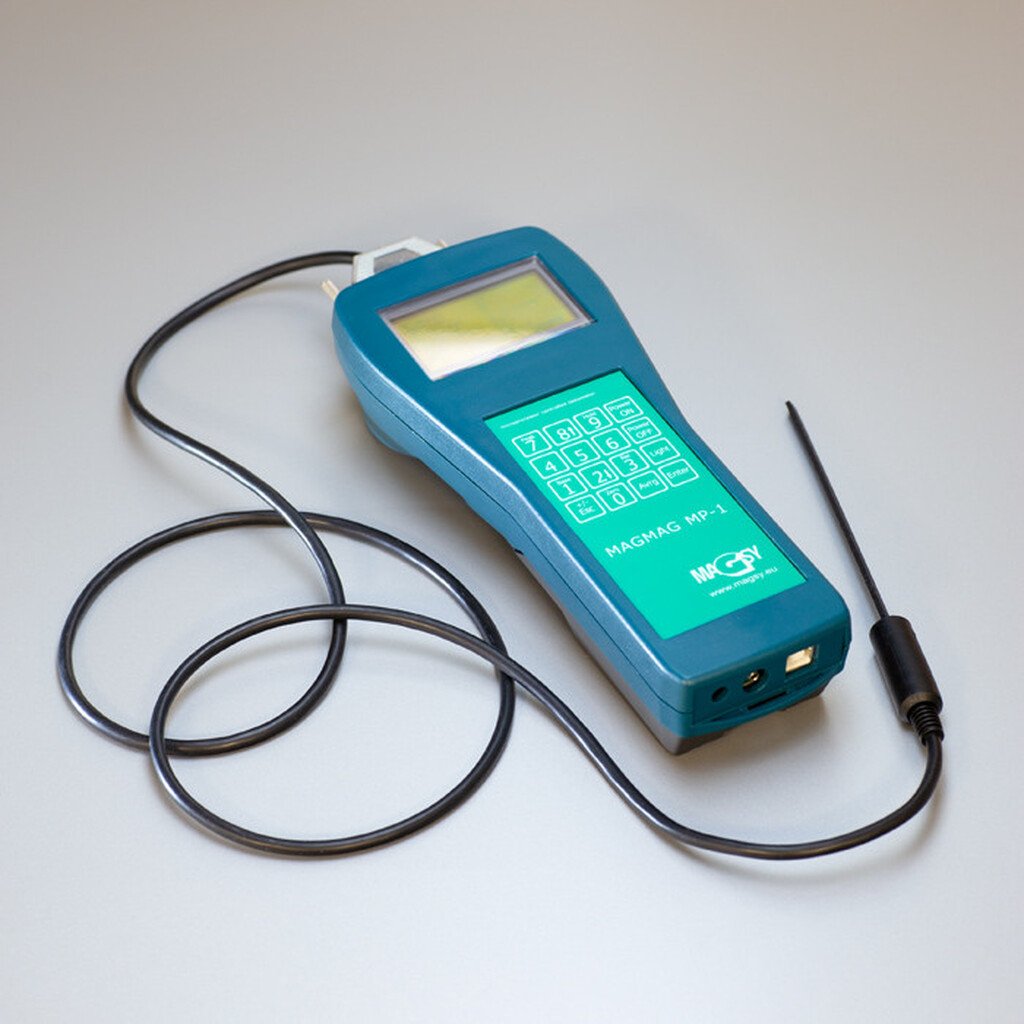

MAGMAG SET is a hand-held electronic device used to accurately measure constantly or slowly changing air magnetic induction values using a Hall probe. Processing of the measured data is fully digital, controlled by a single-chip microprocessor. The delivery includes a Gauss meter, MAGMAG ST Hall probe, A-B 2.0 USB cable, charging power supply, and transport case for safe storage of the device.
Its applications include:
- Magnetic flux measuring
- Magnet quality measuring
- Checking the complete demagnetisation of various metal objects
- Checking the quality of soft magnet components (e.g., relay parts, electromagnets cores, etc.)
The Gauss meter and its Hall probe are factory-calibrated. Upon request, we can secure calibration by a certified Metrology Institute. Calibration by a certified Metrology Institute may be ordered here:49152
Additional parameters
| Category: | Measuring instruments |
|---|---|
| EAN: | 8595133977845 |
| Analog output: | Voltage, 0 - 1 V (connected to a 2.5 mm 2-pin Jack connector on the bottom face of the device in the middle) |
| Device dimensions: | 232 x 97 x 54 mm |

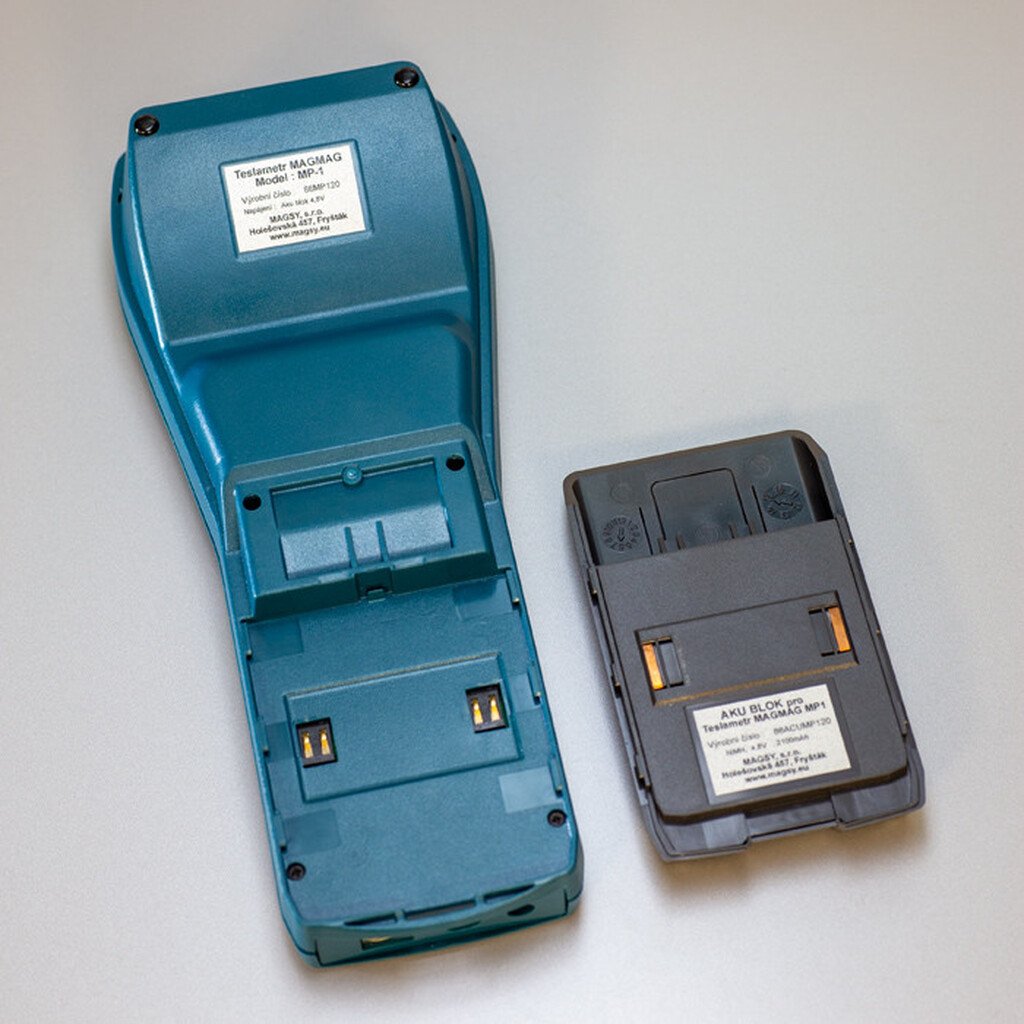

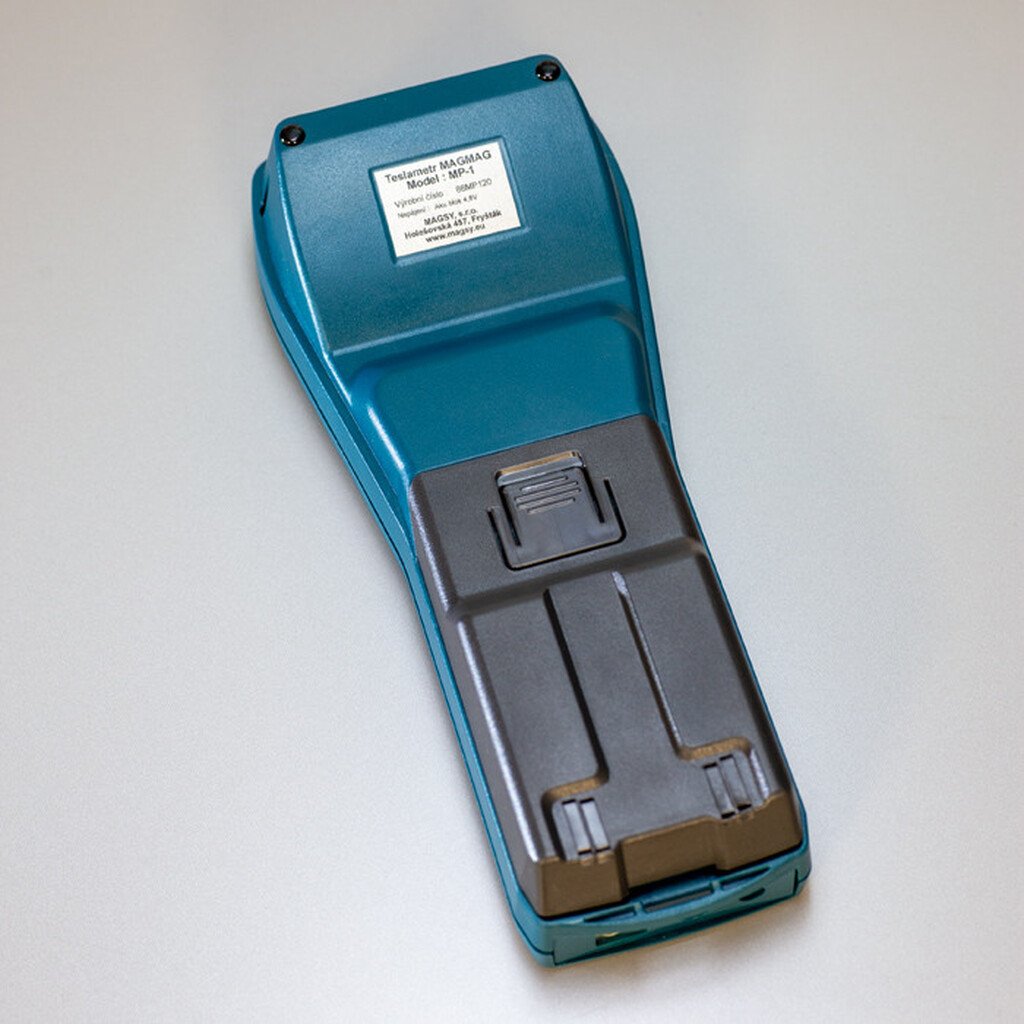

| Device power supply: | Ni-MH accum. block, 4.8V, 2100 mAh |

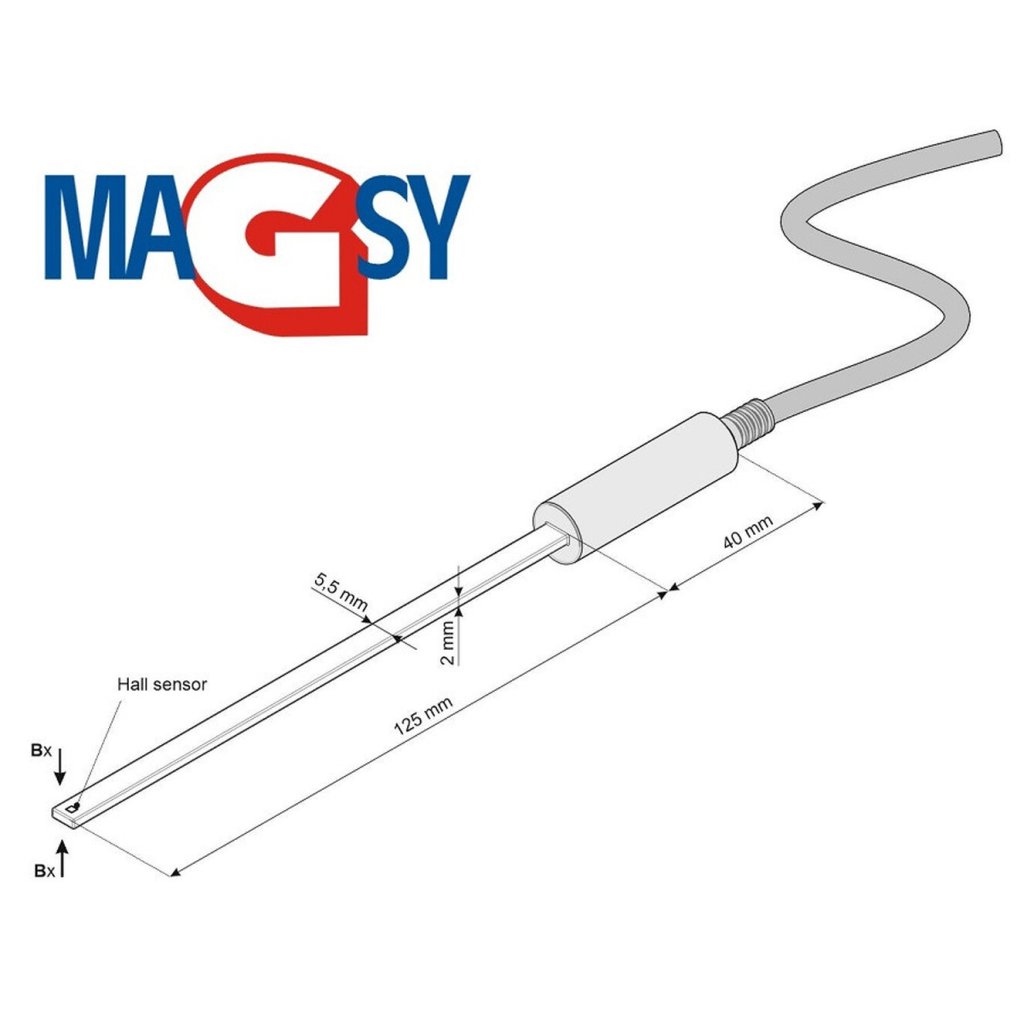

| Hall probe:: | ST, radial, Hall sensor 1x1 mm |
| Measurement accuracy: | 1% of the range |
| Measurement principle: | Hall probe |
| Measuring range: | Automatic -2T... 2TManually 10 mT, 100 mT, 1T, 2T |
| Operating duration per one charge: | Approx. 20 hours (approx. 8 hours with the display backlight on) |
| Operating environment: | Regular |
| Operating temperature range: | + 5 °C - + 40 °C |
| Power consumption: | About 70 mA accord. to the probe used, about 170 mA with lit-up display |
| Sampling: | About 3x per second |
| Temperature drift: | + 0.02 mT/Kelvin |
| Time to reach the specified parameters: | max. 5 min. |
| Total weight: | 505 g, device body with its battery |
| Transmission to serial bus: | 3x per second |
| Units: | Tesla (T), Gauss (Gs), A/m, Oersted (Oe) |
| USB communication: | Terminal or Modbus / Adam mode |
| The item has been sold out… | |
